The
EGS-Spectra RF Spectrum Analyzer
is a device suggested by Brands and Companies as well as BOEING,
NATO, BMW, PHILIPS, Siemens, IBM, Hewlett Packard, Mercedes Benz,
RTL Television, etc.
The EGS-Spectra RF Spectrum Analyzer
can detect signal sources in the 100 metres radius range, as well
as GSM, UMTS, GPRS, GPS, Bluetooth, Wi-Fi, etc. in a frequency
range from 1 MHz ~ 9.4 GHz (max).
The EGS-Spectra multifunctional countersurveillance
device is perfect for homes, offices, hotel rooms and veicles
security. It can detect all eavesdropping transmitters, room bugs,
telephone transmitters, concealed video cameras, audio recorders,
tapped cellular phones, GPS tracking devices and other radio frequency
bugging devices.
The EGS-Spectra RF Spectrum Analyzer
is a indispensable device for Technical Surveillance Counter Measures
(TSCM) or bug sweeps to protect privacy and confidential informations
being disclosed secretly. |
| |
You
can detect several types of interceptions and locate the illegal
surveillance equipments.
Professional RF and EMF measurement devices use a frequency dependant
measurement approach, the so-called spectrum analysis. In a certain
frequency range, the individuals signals and their respective
strengths are being broken down. Thanks to EGS-Spectra
direct frequency display of the individual signal sources, a mapping
of measurement results to the corresponding radiation sources
is possible.
The rechargable NiMH high-performance battery has been developed
specifically for the EGS-Spectra
devices and is optimally suited for their requirements. Thanks
to NiMH technology, the dreaded "Memory effect" is now
a thing of the past, as with this power battery, maximum quality
and long life have been our primary goals. Another reason why
such a battery technology is necessary is the high power demand
of the high-performance DSP used in all EGS-Spectra
units, which furthermore include very demanding RF receiving circuitry.
|
| |
| |
The
highly complex calculations in EGS-Spectra
spectrum analysis (incl. exposure limit calculation) is
being performed, unnoticed in the bakkground, by a high-performance
DSP (Digital Signal Processor).
This ultra-fast processor even allows real-time display
in EMF (LF) unit.
The EGS-Spectra measurement
device offers Data Logging feature that allows long-term
recordings of measurement results over a freely adjustable
period of time. This is particularly indispensable for serious
evaluation of exposure by appliances and machinery which
have a changing power consumption or radiation strength
over time.
High-resolution digital pixel display (80x60mm) in FSTN
quality with various numeric indicators, large bargraph
and text display for simultaneous display of several measurement
results and physical units. |
|
| |
| Available
in various models with different Frequency Range depending on
the needs. |
| |
The
exceptional specifications of the Log Periodic Broadband Yagi
HyperLOG antenna are recognized impressively
by an abundance of ISO calibration certificates and the DKD-certified
SERCO AG laboratory. The HyperLOG
antennas are thus the perfect solution for both mobile measurement
and direction finding applications as well as the laboratory.
Every HyperLOG antenna goes through
rigorous testing in our laboratories before dispatch and is equipped
with a high quality Gold Coating, a high-tech antenna-case (Radom)
which offers protection against mechanical damange and environmental
influence, a top-quality integrated tripod connection and an SMA
connector (18 Ghz version) with twist protection.
Apart from application as a high quality measurement-antenna and
direction finder, this emc-antenna is also very well suited as
a directional-antenna for WLan, WiFi, and other directional communication
applications.
The HyperLOG antenna is suitable
for measurement according to the following standards and procedures:
CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022 e
MIL-Std-461. |
| |
| |
The
PC Analysis Software demonstrates EGS-Spectra's
vast capabilities.
It can be used in addition to EGS-Spectra
and offers an incredible amount of features. Just get it
from
Download Center, and your PC turns
into a real spectrum analyser with a huge display: |
|
| |
Multi-device capability. Remote control of several EGS-Spectra
units. These can be controlled and their data
displayed at once on a single PC.
Display of channel identifiers for exact identification of providers,
channel numbers etc. freely programmable and extensible
High-Resolution, freely scalable, coloured spectrum display
with falloff function.
Up to 10 markers with frequency and level display.
Intuitive zoom control with very comfortable frequency adjustment.
SUPER-LOGGER: all data can be written to disk continuously.
File format is readable by spreadsheet applications,
for creating custom reports, etc. (.doc, .txt, .rtf. .pdf. ;.xls,
.htm, .html)
Freely positionable windows for comfortable entry of frequency,
RBW, sweeptime etc.
Various pre-defined profiles for DECT, UMTS, GSM, WLan, etc.for
instant recall. Including optimal parameters
and extensive channel information. Freely programmable and extensible.
Independant main display with simultaneous display of dBm, dB΅V,
V/m, W/m2 and A/m, each with AUTORANGE. Freely
transposable and scalable.
Superb exposure limit display with various profiles (ICNIRP,
Salzburg precautionary values, ECOLOG, etc.). Freely programmable with a virtually infinite amount of
display options.
Functionality
to update unit measurement device firmwares.
Freely programmable key assignments and labels for unit measurement devices.
Filemanager and compiler for creation and management of your
own programs for measurement devices. |
| |
Technical
Specifications :
RF Detector and Analyzer Device for electronic countermeasures.
Includes more than 5 Instruments:
Electromagnetic Field Measurement Device
RF Spectrum Analyzer
RF Measurement Device
RF Scanner
RF Detector
High Resoution Digital LC Display (80x60 mm in Size)
USB 2.0 Connector
Audio Output and Internal Speaker
PC Analysis Software
HyperLOG EMC/directional Antenna and Tripod
Detachable Miniature Rod Antenna
1 metre SMA Cable
SMA Adapter and Toolset
1300 mAh Power Battery (5h Operating) with Charger

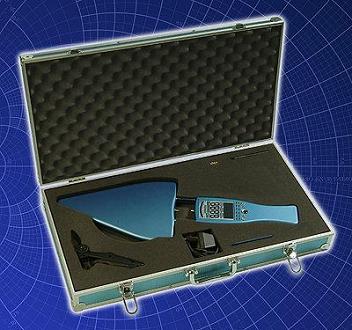

Sturdy Aluminum-Design Carrycase (with Custom Padding)
Manual with Lots of Basic Information, Hints, Backgrund Information
and Exposure Limit Tables
Frequency Range: 10 ~ 8.000 Mhz (8 Ghz)
1 ~ 10.000 Mhz (10 Ghz) on demand
Sensibility 90 Dmb
Detecting Range: 100 metres |
| |
|
